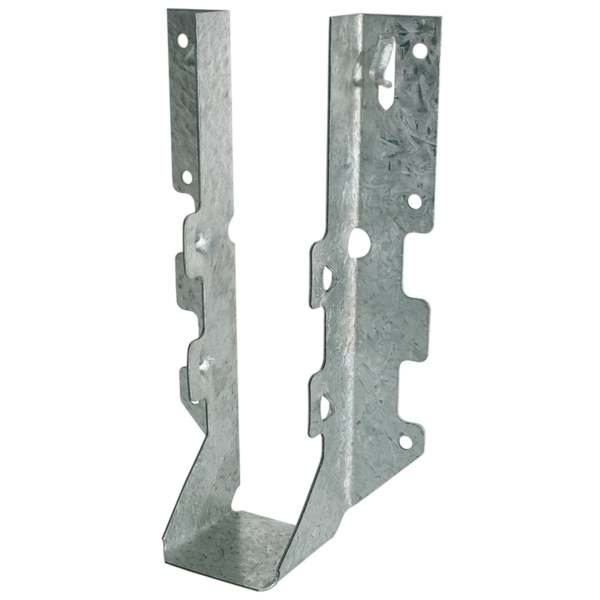

Simpson Strong-Tie LUS28Z Joist Hanger, 6-5/8″X1-9/16″, Steel, ZMAX
$1.65
Distributes the load through two points on each joist nail for greater strength; it also allows the use of fewer nails, faster installation and the use of standard nails for all connections.
Do not bend or remove tabs.
Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products; 16d sinkers may be used where 10d commons are specified with no reduction in load; with 3x carrying members, use 16dx2-1/2″ nails into the header and 16d commons into the joist with no load reduction; with 2x carrying members, use 10dx1-1/2″ nails into the header and 10d commons into the joist, reduce the load to 0.64 of the tabel value. Meets ICC-ES-ESR-2549, 2523, 3096, L.A. City RR25807, 25910 and FL10655.
- DOUBLE SHEAR
- FACE MOUNT – GALVANIZED
- ZMAX COATING
- 18 Gauge
- Size Inches: 2 x 8
Description
Distributes the load through two points on each joist nail for greater strength; it also allows the use of fewer nails, faster installation and the use of standard nails for all connections.
Do not bend or remove tabs.
Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products; 16d sinkers may be used where 10d commons are specified with no reduction in load; with 3x carrying members, use 16dx2-1/2″ nails into the header and 16d commons into the joist with no load reduction; with 2x carrying members, use 10dx1-1/2″ nails into the header and 10d commons into the joist, reduce the load to 0.64 of the tabel value. Meets ICC-ES-ESR-2549, 2523, 3096, L.A. City RR25807, 25910 and FL10655.
- DOUBLE SHEAR
- FACE MOUNT – GALVANIZED
- ZMAX COATING
- 18 Gauge
- Size Inches: 2 x 8
Product Details
Series: LSU
Size: 2 x 8 in
Style:Face Mount
Thickness: 18 ga
Load Capacity: 1365 lb
Skew Angle: 45 deg
Material: Steel
Carrying Member Fastener Type: (4) 10d Nail
Finish: Galvanized
Standards: ICC-ES Listed
Width: 3.563 in
Additional information
| Weight | 0.36 lbs |
|---|---|
| Dimensions | 14.375 × 8.375 × 9 in |
