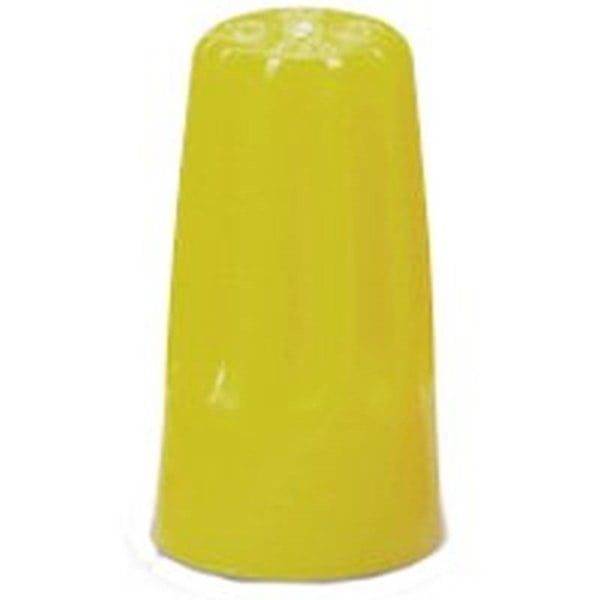

WireGard 19-004 High-Performance Twist-On Wire Connector, 300 – 600 VAC, 18 – 10 AWG Copper, Screw-On Connection

$2.09

Tight, square-wire spring threads directly onto conductors for fast connections with no slip. Tightens without ratcheting, easily removed for repeat usage on same size combination or larger. Fluted shell surface permits a firm grip for easy finger-tight connections. Thermoplastic shell shields against environmental extremes. Flame-retardant properties resist heat distortion up to 221 degrees Fahrenheit. Superior flash-over protection. High-dielectric shell features deep skirt design to prevent exposure of bare wire. Buttress threads screw into wire insulation. For copper to copper connections only.

Quantity: 9

SKU: 6308845 Y Categories: ,

Description

Tight, square-wire spring threads directly onto conductors for fast connections with no slip. Tightens without ratcheting, easily removed for repeat usage on same size combination or larger. Fluted shell surface permits a firm grip for easy finger-tight connections. Thermoplastic shell shields against environmental extremes. Flame-retardant properties resist heat distortion up to 221 degrees Fahrenheit. Superior flash-over protection. High-dielectric shell features deep skirt design to prevent exposure of bare wire. Buttress threads screw into wire insulation. For copper to copper connections only.

Product Details

Series: GB-4
Type: High-Performance, Twist-On
Conductor Size: 18 – 10 AWG
Conductor Material: Copper
Material: Thermoplastic
Voltage Rating: 300 – 600 VAC
Connection Type: Screw-On
Standards:cULus Listed, ROHS Compliant
Length: 10.300 in
Usage: For Air Conditioners, Ceiling Fans, Doorbells, Indoor Lighting, Switches, Thermostats, Ballasts, Large and Small Appliances
Width: 3.200 in
Height: 5.200
Temperature Rating:221 deg F
Package Type:Carded
Quantity Per Pack: 9

Features

  • Color-coded for easy size selection
  • Tight, square-wire spring makes quick, secure connections for positive continuity
  • Tough, thermoplastic shell shields against environmental extremes
  • Resists chemical action from hydrocarbons, diluted acid or alkaline solutions
  • Flame-retardant properties resist heat distortion up to 105 deg C
  • High dielectric shell features deep skirt design to prevent exposure of bare wire
  • Copper-to-copper connections only

Additional information

Weight 0.05 lbs
Dimensions 10.3 × 3.2 × 5.2 in
