DK2 5X7 Landscape Trailer (DUG) Galvanized
THE DK2 MMT5X7 GALVANIZED WITH DRIVE UP GATE SINGLE AXLE MULTI-UTILITY TRAILER IS ONE OF THE MOST VERSATILE TRAILERS ON THE MARKET.
Sitting on a solid square tube cambered axle with 12 inch. 6 ply bias tires, and a load capacity of 1,639 lbs. When the front and back load-bearing gates are down, the trailer bed extends to nearly 11.58 ft. Another great feature is the tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and / or interchangeable.
Description
THE DK2 MMT5X7 GALVANIZED WITH DRIVE UP GATE SINGLE AXLE MULTI-UTILITY TRAILER IS ONE OF THE MOST VERSATILE TRAILERS ON THE MARKET.
Sitting on a solid square tube cambered axle with 12 inch. 6 ply bias tires, and a load capacity of 1,639 lbs. When the front and back load-bearing gates are down, the trailer bed extends to nearly 11.58 ft. Another great feature is the tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and / or interchangeable.
- Single axle, multi-utility trailer is one of the most versatile trailers on the market
- Sits on a solid square, tube cambered axle with 30.5 cm (12”), 6 ply bias tires
- Load capacity of 1,639 lb (743.4 kg)
- When the front and back load-bearing gates are down, trailer bed extends to nearly 3.5 m (11.58 ft)

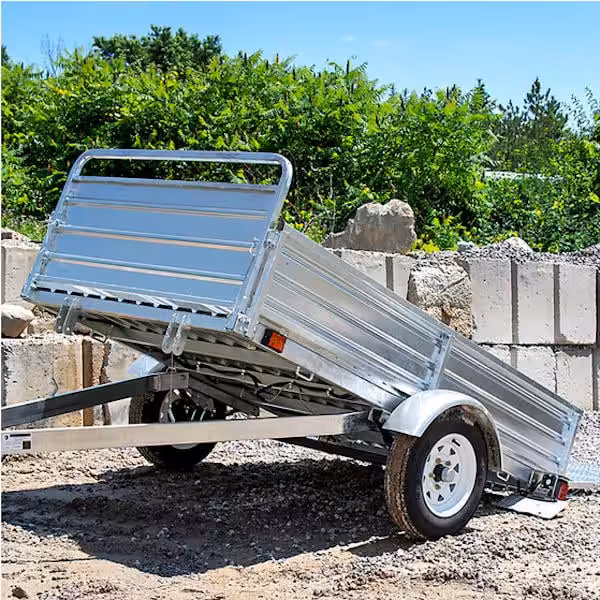

- Tilting bed allows for easy dump capability
- Fabricated from 100% hot-dipped galvanized steel
- All components are reinforced, adjustable, removable and/or interchangeable
*Product appearance and specifications are subject to change.
DK2 5X7 Landscape Trailer with Drup Up Gate MMT5X7G-DUG Galvanized Specifications
ITEM NUMBER MMT5X7G-DUG
PAYLOAD CAPACITY 1,639 LB (743.4 KG)
GVW 2,090 LB (948 KG)
CURB WEIGHT 451 LB (204.6 KG)
BED DIMENSIONS 52 x 88″ → 52 x 136″ (1.32 x 2.24 m → 1.32 x 3.45 m)
OVERALL LENGTH 177″ (4.5 m) TONGUE EXTENDED
FLOOR HEIGHT 20″ (50.8 cm)
CONSTRUCTION FULLY WELDED HOT-DIPPED GALVANIZED TUBULAR STEEL
SIDE PANELS 14″ (35.6 cm) HEIGHT CORRUGATED STEEL
DROP GATES 24″ (61 cm) HEIGHT CORRUGATED DRIVE-UP GATE
LIGHTING PRE-WIRED, QUICK CONNECT LED LIGHTING, USES D.O.T. STANDARDS, ADJUSTABLE REAR LIGHT PROTECTORS & PROTECTED SIDE MARKERS
DUMP BED 2 POSITION
HITCH HEIGHT 16″ (40.6 cm)
FLOORING 100% WELDED, CORRUGATED & REINFORCED STEEL BED
SHIPPING DIMENSIONS 88.5 x 55 x 8″ (224.79 x 139.7 x 20.32 cm)
