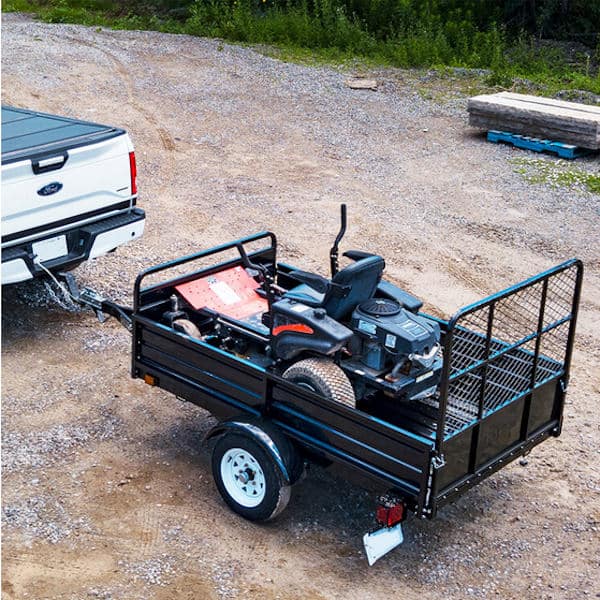

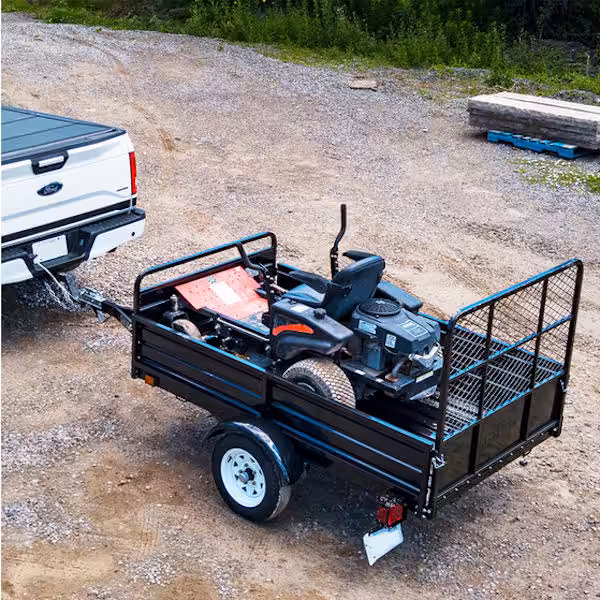

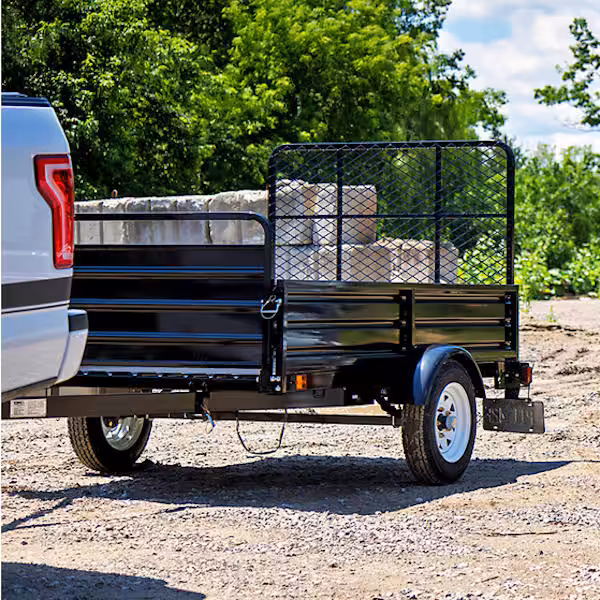

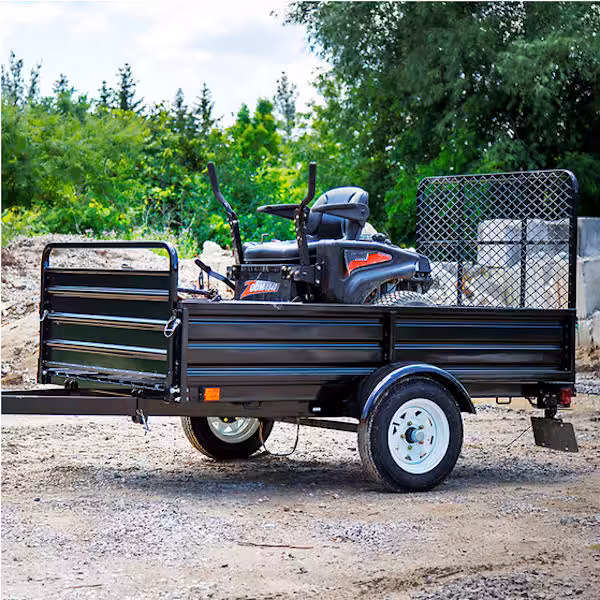

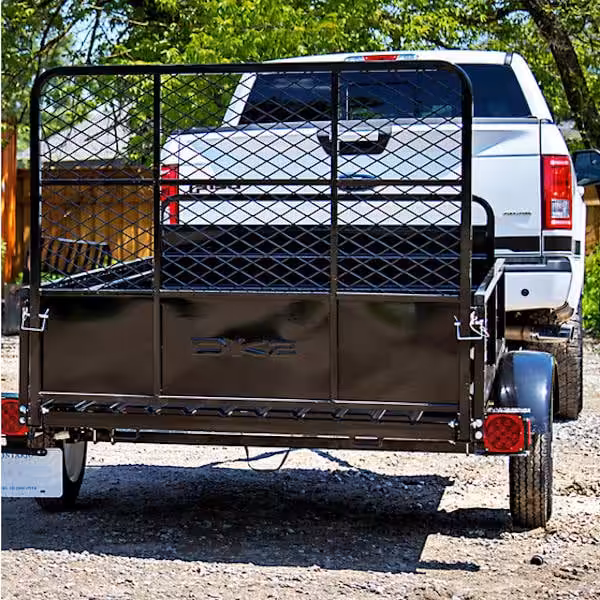

DK2 5X7 Landscape Trailer (DUG)
THE DK2 MMT5X7 WITH DRIVE UP GATE IS A SINGLE AXLE MULTI-UTILITY TRAILER AND ONE OF THE MOST VERSATILE TRAILERS ON THE MARKET.
Sitting on a solid square tube cambered axle with 12 inch. radial tires, and a load capacity of 1,639 lbs. When the front and back load-bearing gates are down, the trailer bed extends to nearly 11.58 ft. Another great feature is the tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and / or interchangeable.
Description
THE DK2 MMT5X7 WITH DRIVE UP GATE IS A SINGLE AXLE MULTI-UTILITY TRAILER AND ONE OF THE MOST VERSATILE TRAILERS ON THE MARKET.
Sitting on a solid square tube cambered axle with 12 inch. radial tires, and a load capacity of 1,639 lbs. When the front and back load-bearing gates are down, the trailer bed extends to nearly 11.58 ft. Another great feature is the tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and / or interchangeable.
- Single axle, multi-utility trailer is one of the most versatile trailers on the market
- Sits on a solid square, tube cambered axle with 30.5 cm (12”), 6 ply bias tires
- Load capacity of 1,639 lb (743.4 kg)
- When the front and back load-bearing gates are down, trailer bed extends to nearly 3.5 m (11.58 ft)
- Tilting bed allows for easy dump capability
- Fabricated from 100% steel
- All components are reinforced, adjustable, removable and/or interchangeable
*Product appearance and specifications are subject to change.
DK2 5X7 Landscape Trailer with Drup Up Gate MMT5X7-DUG Specifications
ITEM NUMBER MMT5X7-DUG
PAYLOAD CAPACITY 1,639 LB (743.4 KG)
GVW 2,090 LB (948 KG)
CURB WEIGHT 451 LB (204.6 KG)
BED DIMENSIONS 52 x 88″ → 52 x 136″ (1.32 x 2.24 m → 1.32 x 3.45 m)
OVERALL LENGTH 177″ (4.5 m) TONGUE EXTENDED
FLOOR HEIGHT 20″ (50.8 cm)
CONSTRUCTION FULLY WELDED HEAVY DUTY TUBULAR STEEL
SIDE PANELS 14″ (35.6 cm) HEIGHT CORRUGATED STEEL
FRONT DROP GATE 24″ (61 cm) HEIGHT CORRUGATED DRIVE-UP GATE
LIGHTING PRE-WIRED, QUICK CONNECT LED LIGHTING, USES D.O.T. STANDARDS
ADJUSTABLE REAR LIGHT PROTECTORS & PROTECTED SIDE MARKERS
DUMP BED 2 POSITION
HITCH HEIGHT 16″ (40.6 cm)
FLOORING 100% WELDED, CORRUGATED & REINFORCED STEEL BED
SHIPPING DIMENSIONS 88.5 x 55 x 8″ (224.79 x 139.7 x 20.32 cm)
Videos
DK2 MMT In Action
DK2 MMT Trailer Features
DK2 MMT Trailer Series Assembly
Manuals
L1 Model Manual And Assembly Instructions (PDF)
L4 Model Manual And Assembly Instructions (PDF)
L7X Model Manual And Assembly Instructions (PDF)
